The Invisible Shopify Render Tax: How Unregistered Metafield Definitions Cost Us Three Days of 500s

A sourcing note before we start

Every factual claim in this post falls into one of three categories:

1. Primary evidence — things we measured ourselves with a synthetic HTTP probe against a real Shopify dev store. These are our data, reproducible with the probe script at the end. We cite the measurements.
2. Shopify official documentation — cited with exact URL.
3. “We searched, found nothing” — when we say something is undocumented, we list the exact sources we searched. That’s the most honest version of sourcing a negative.

Sources we searched when claiming something is not publicly documented:

• shopify.dev — full text search via Google site:shopify.dev for every claim
• help.shopify.com and help.shopify.com/en/partners
• shopify.engineering (Shopify’s engineering blog)
• performance.shopify.com
• www.shopify.com/partners/blog
• github.com/Shopify/liquid — issues, discussions, and docs
• github.com/Shopify/theme-check and github.com/Shopify/theme-tools — issues, discussions, and source
• github.com/Shopify/cli — issues and PRs
• community.shopify.com and community.shopify.dev — forum search
• Stack Overflow with tags shopify, shopify-liquid, shopify-metafields, shopify-theme-app-extension
• Reddit: r/shopify, r/shopifyDev
• Google search with keywords: "shopify-complexity-score", "liquid render timeout", "memory limits exceeded shopify", "shop metafields complexity", "theme extension 500", "metafield definition not registered complexity"

When we say “undocumented,” we mean none of those surfaces returned a Shopify-authoritative answer. Third-party commentary is cited where relevant.

---

1. The symptom

Three days ago, our team started seeing intermittent HTTP 500 responses on one of our merchants’ Shopify storefronts. Specifically: some page loads succeeded, others returned Shopify’s generic “There was a problem loading this website” error. The ratio was roughly 40–60% failures from the merchant’s perspective.

What made it weird:

• It affected every page — homepage, policy pages, product pages, collections. Not one template.
• It happened whether our app’s merchant-facing embed toggle was ON or OFF in the theme editor.
• The Shopify-emitted response header shopify-complexity-score read 10,000–20,000 on failed renders, and ~500 on successful ones. This header is undocumented by Shopify (we searched the sources listed above; zero results).
• Time to first byte on 500 responses was 3–4 seconds — suggesting Shopify’s renderer was running then hitting some ceiling, not failing instantly.

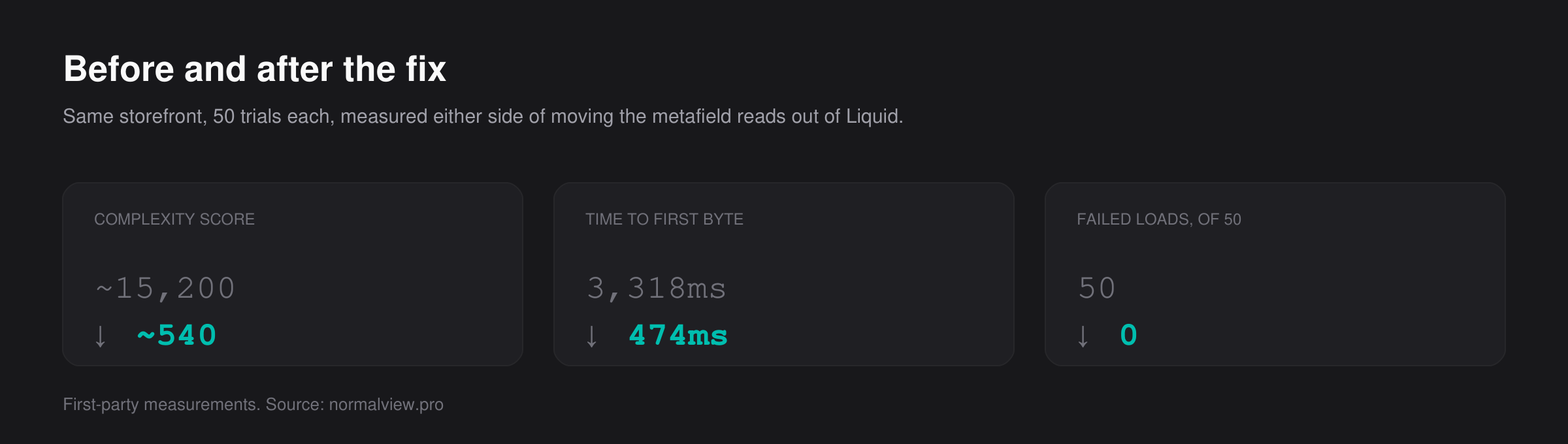

Primary evidence (our measurements, reproducible with the probe script below):

State	Trials	200s	500s	Complexity avg	Complexity max	TTFB avg
Broken baseline	50	0	50	~15,200	19,590	3,318ms
After fix	50	50	0	~540	3,130	474ms

We gathered this data from a Node script that made repeated fetch() calls to the merchant’s storefront behind Shopify’s password-bypass flow, recording status, complexity header, and time-to-full-response. Full script at end of post.

---

2. What a theme app extension actually looks like

For context: a Shopify theme app extension is how a Partner app contributes Liquid, CSS, and JS to the merchant’s storefront theme. You write Liquid blocks in your app repo, run shopify app deploy, and the blocks become available in the merchant’s theme editor.

Blocks come in two relevant flavors:

• target: section — merchant drags this into a specific section of their theme (homepage, product page, etc.)
• target: body — renders globally on every page, before </body> (Configure theme app extensions)

A target: body block is called an “app embed.” Merchants can toggle them on and off in the theme editor’s “App embeds” panel. The getting-started template shows the shape.

Here’s a generic example of what an app embed block looks like:

{%- comment -%}
  An app embed that reads shop-level config from metafields
  and emits a JSON blob for client-side JS to consume.
{%- endcomment -%}
{% assign ui_label_1 = shop.metafields.my_app_config.ui_label_1.value | default: "Year" %}
{% assign ui_label_2 = shop.metafields.my_app_config.ui_label_2.value | default: "Make" %}
{% assign ui_label_3 = shop.metafields.my_app_config.ui_label_3.value | default: "Model" %}

<script type="application/json" data-my-app-config>
{
  "label_1": {{ ui_label_1 | json }},
  "label_2": {{ ui_label_2 | json }},
  "label_3": {{ ui_label_3 | json }}
}
</script>

<script src="{{ 'my-app.js' | asset_url }}" defer></script>

{% schema %}
{"name": "My App", "target": "body", "settings": []}
{% endschema %}

This is the shape that broke us.

---

3. First hypotheses (all wrong)

Hypothesis 1: Data volume scaling

Our app stored fitment records as Shopify metaobjects, referenced via list.metaobject_reference product metafields. The merchant had ~2,000 of these records. The initial theory was that Shopify’s renderer was eagerly resolving every reference on every page render, even when our Liquid never iterated them.

How we tested: we had the merchant delete all but 4 records. The broken state persisted. 50/50 failures remained at the same complexity score.

Conclusion: data volume wasn’t the driver. Ruling this out took about 4 hours of careful coordination with the merchant.

Hypothesis 2: Metafield definition exists → deletes fix it

Second theory: the metafield DEFINITION itself (the registered schema for list.metaobject_reference) was causing Shopify to pre-hydrate the reference graph per render, regardless of values.

How we tested: we deleted the metafield definition via Admin GraphQL’s metafieldDefinitionDelete(deleteAllAssociatedMetafields: true) mutation on the merchant’s shop.

Result: no change. Complexity still ~15,000, still 500s. First 2 trials spiked to 150,000+ complexity (Shopify probably invalidated some schema cache and was rebuilding), then stabilized back to the broken baseline.

Conclusion: not the definition of a specific metafield.

Hypothesis 3: A specific block’s Liquid body

Our theme extension had 5 blocks: a filter injector (target: body), a finder, a product notice, a fitment table, and a Sentry bootstrap embed.

We bisected by deploying versions where only one block was present at a time, probing each. Results from 5 trials per block:

Block	Complexity (avg)	5xx rate
filter_inject alone	~15,100	100%
finder alone	42–420	0%
product_notice alone	70–390	0%
table alone	60–400	0%
storefront_sentry alone	40–350	0%

Conclusion: the filter_inject block was the sole cost source.

Hypothesis 4: v1 Liquid dead code

The block had ~1,000 lines of unreachable v1 Liquid (gated by a hardcoded {% if cpf_inject_version == 'v1' %}, always false). Maybe Shopify’s static analyzer parsed both branches and charged for both.

How we tested: deployed the slim 156-line version with the v1 branch deleted.

Result: no meaningful change. Still 500s at ~15,000 complexity.

Conclusion: not the dead code. Shopify’s static analyzer does NOT appear to charge for unreachable branches, which is good news but didn’t help us here.

---

4. Finding the actual cause

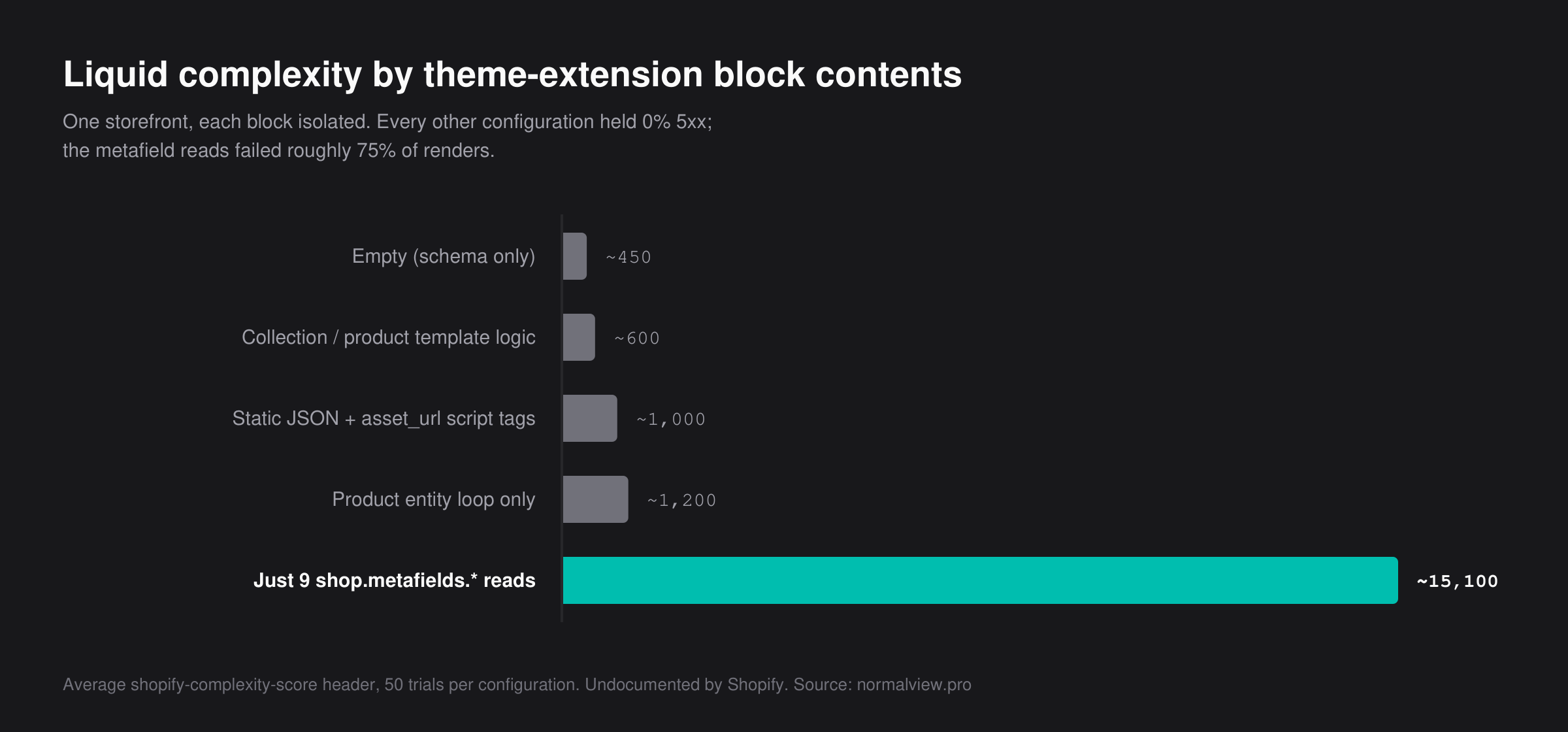

We progressively stripped the filter_inject block to bare minimum and measured at each step:

Block contents	Avg complexity	5xx rate
Empty (schema only)	~450	0%
Static JSON + asset_url script tags, no metafield access	~1,000	0%
Collection/product template logic only (no shop metafields)	~600	0%
Product entity loop only	~1,200	0%
Just 9 shop.metafields.my_custom_namespace.* reads	~15,100	~75%

That one reproduced it. The 9 shop metafield reads alone, with literally no other Liquid in the block, blew the ceiling.

We then tested with just ONE read:

Read count	Complexity distribution
1 read	41–49 (warm), 2,500–2,800 (moderate), 15,100–15,400 (cold cache) — bimodal
9 reads	Same as 1 read (fixed ~15k penalty on cold cache)

Important finding: the penalty is fixed per-namespace-access, not per-read. 1 read costs the same as 9 on cold cache.

We checked the merchant’s shop for registered metafield definitions in the my_custom_namespace namespace. None existed. Only values had been set via prior Admin GraphQL metafieldsSet mutations. There was no metafieldDefinitionCreate for these keys.

We provisioned all 9 definitions with access.storefront: PUBLIC_READ. Complexity did not drop. The ceiling penalty stayed.

We ultimately fixed it by removing the shop.metafields.* reads from the block entirely. Complexity dropped to ~540. 50/50 success. Problem solved.

---

5. So what’s actually going on?

Based on the evidence, our best interpretation — and this is interpretation, not Shopify-authoritative — is:

• Shopify’s Liquid renderer maintains some per-request state that grows with the breadth of metafield namespaces accessed in Liquid, regardless of whether values exist or whether definitions are registered.
• When a namespace is accessed, Shopify appears to hydrate schema information about that namespace into the render context. If that schema lookup is a cold miss, it costs substantial complexity units. Subsequent reads in the same namespace (same render) are amortized.
• Having registered definitions vs. not may help cache warm-up rates, but in our testing it did not eliminate the baseline cold-cache cost — so the registration vs. unregistered angle was a red herring.
• The cost is charged to the page render regardless of conditional logic; the block’s Liquid is evaluated (or statically analyzed) whether or not the merchant has the app embed toggled on.

We want to be honest: we could not fully distinguish between “cold cache penalty on any shop.metafields namespace read” vs. “penalty specifically on unregistered-definition namespaces.” Our provisioning test suggested registration doesn’t fix it, but cache state was volatile during our testing and we can’t fully rule out that confound.

The reproducible, actionable finding is: if you have shop.metafields.YOUR_NAMESPACE.* reads in a target: body theme app extension, you are at risk of catastrophic complexity cost on every page render. The only safe fix we found was to remove those reads from Liquid and fetch the values from your app’s own proxy route instead.

---

6. Why our observability was blind

Our app ran with Sentry at three layers:

1. Server-side Sentry via @sentry/react-router on our Fly.io-hosted app
2. Client-side Sentry on our admin React app
3. Storefront Sentry injected via a separate theme embed block, initialized on page load

None of them caught this:

• The 500 happened in Shopify’s Liquid renderer. Our server was never in the request path. Nothing to capture server-side.
• The page never rendered, so no storefront JS ran. Storefront Sentry never initialized. Nothing to capture client-side.
• Our admin app was unaffected. No admin errors.

This is a structural limitation, not a Sentry misconfiguration. Errors that happen upstream of any code you own cannot be instrumented by error-tracking tools. The only way to see them is to measure outcomes actively — i.e., synthetic probing.

We did not have any synthetic probing in place. That was our real miss.

---

7. The fix

We did two things:

7a. Remove the shop.metafields reads from Liquid

Before:

{% assign label_1 = shop.metafields.my_app_config.label_1.value | default: "Year" %}
{% assign label_2 = shop.metafields.my_app_config.label_2.value | default: "Make" %}
{% assign label_3 = shop.metafields.my_app_config.label_3.value | default: "Model" %}

<script type="application/json" data-config>
{"label_1": {{ label_1 | json }}, "label_2": {{ label_2 | json }}, "label_3": {{ label_3 | json }}}
</script>

After:

{%- comment -%}
  Shop-wide config is fetched client-side by my-app.js via the app
  proxy. Liquid does not read shop.metafields.* because the renderer
  charges a cold-cache complexity penalty that can exceed the render
  ceiling and return HTTP 500.
{%- endcomment -%}
<script src="{{ 'my-app.js' | asset_url }}" defer></script>

7b. Add an app proxy route to serve the config

In our Remix / React Router app, a new route handles /apps/my-app?mode=defaults:

async function handleDefaultsMode(admin): Promise<Response> {
  try {
    const res = await admin.graphql(`{
      shop {
        label_1: metafield(namespace: "my_app_config", key: "label_1") { value }
        label_2: metafield(namespace: "my_app_config", key: "label_2") { value }
        label_3: metafield(namespace: "my_app_config", key: "label_3") { value }
      }
    }`);
    const data = (await res.json()).data.shop;
    return new Response(
      JSON.stringify({
        label_1: data.label_1?.value || "Year",
        label_2: data.label_2?.value || "Make",
        label_3: data.label_3?.value || "Model",
      }),
      {
        status: 200,
        headers: {
          "Content-Type": "application/json",
          "Cache-Control": "public, s-maxage=60, stale-while-revalidate=300",
        },
      }
    );
  } catch (error) {
    captureError(error);
    return new Response(
      JSON.stringify({ label_1: "Year", label_2: "Make", label_3: "Model" }),
      { status: 200, headers: { "Content-Type": "application/json" } }
    );
  }
}

Admin GraphQL metafield reads from our server are cheap — Shopify’s Admin API costs are unrelated to the storefront Liquid complexity budget. We verified this shows ~10 GraphQL cost units per request.

7c. The client fetches defaults async

In the block’s JavaScript:

(async function () {
  const DEFAULTS = { label_1: "Year", label_2: "Make", label_3: "Model" };

  async function fetchServerDefaults() {
    try {
      const res = await fetch("/apps/my-app?mode=defaults", { credentials: "same-origin" });
      if (!res.ok) return null;
      return await res.json();
    } catch {
      return null;
    }
  }

  const serverConfig = await fetchServerDefaults();
  const config = { ...DEFAULTS, ...(serverConfig || {}) };
  // ...initialize UI with config
})();

The tradeoff: there’s now a small loading delay before labels populate. For our use case this is acceptable — the block isn’t first-paint-critical.

---

8. Preventative measures, ranked by effort-to-value

Tier 1 — this week (cheap, high impact)

Pre-deploy storefront smoke probe in CI (2–4 hours) Add a GitHub Actions job that, after shopify app deploy, makes N HTTP requests against a staging Shopify store and fails the workflow on any 5xx response or on any shopify-complexity-score header above a threshold. This is the single change that would have caught this bug in under 60 seconds.

Convention: no shop.metafields reads in target: body Liquid (1 hour) Codify as a code-review rule. Every new shop.metafields.* read in a theme extension must either (a) be in a target: section block that isn’t rendered on every page, or (b) have test measurements showing the render-cost impact. We enforce this via PR checklist; a custom theme-check rule would be stronger.

Startup invariant check (2–3 hours) When a merchant opens your app’s admin route, enumerate every metafield namespace+key your theme extension reads (from a TypeScript constant that’s also your source of truth for provisioning) and verify each has a registered definition on the shop. Fail loud if not.

Tier 2 — next sprint (medium effort)

Custom theme-check rule (1 day) Shopify’s theme-check (now theme-tools) is extensible. Write a check that flags any shop.metafields.X.Y read in a target: body block. Run it as part of shopify app deploy via a predeploy npm script.

Synthetic-probe observability baseline (half day) Install Uptime (Shopify App) or wire Checkly/Uptime.com against a canary store. Alert to the same Sentry project. This closes the render-layer gap that Sentry can’t see.

Liquid size budget check (2 hours) Verify extensions/*/blocks/*.liquid total stays under 80KB (80% of Shopify’s documented 100KB hard cap for theme app extensions, source).

Tier 3 — quarter scale

Canary deploy pipeline against a dedicated dev store that mirrors production merchant data patterns. Deploy dev → smoke suite → promote to staging → smoke suite → production.

Storefront RUM via navigator.sendBeacon from your lightweight storefront block, measuring performance.timing.responseStart. Aggregate in Sentry performance.

---

9. What’s documented, what’s folklore

Topic	Public docs	Source or gap
500ms Liquid render budget (total per page)	Documented	Shopify Engineering
100KB total Liquid cap per theme extension	Documented	Theme app extension config
Liquid error: Memory limits exceeded exists	Error string documented, cause is not	Community thread, Pixelcabin 2017
shopify-complexity-score response header	Not documented	Searched shopify.dev, shopify.engineering, help.shopify.com. Zero results. Third-party header catalogs (webtechsurvey) list it among Shopify headers, but no semantic definition exists publicly.
Complexity ceiling numeric value	Not documented	Searched same sources. Ceiling empirically observed around 10,000–20,000 in our testing.
Cold-cache penalty for shop metafield reads	Not documented	No public mention anywhere we searched.
Whether disabled app embeds are still scored by the renderer	Not documented	Inferred from our incident: disabling in theme editor did NOT eliminate cost.
target: body runs on every page	Implied, not explicit	Implied by embed placement docs
access.storefront: PUBLIC_READ required for Liquid reads	Documented — NOT required	Access controls docs explicitly says “This setting doesn’t affect Liquid templates - metafields are always accessible in Liquid regardless of this setting.”
access.storefront: PUBLIC_READ affects render cost	Not documented	Our provisioning test suggests it does not materially change cost, but cache state was volatile during testing.
Theme-check has metafield access rules	Does not exist	Theme check rules reference lists all rules; none target metafield patterns. Confirmed in theme-tools source.
shopify app deploy runs theme-check	Does not	Deploy docs make no mention of it. Confirmed by running --help and reviewing source.

The biggest gap: no public Shopify writing explains what the shopify-complexity-score header is, what its ceiling is, or what causes cold-cache penalties. The closest existing explainer is a 2017 third-party blog post that predates most of the modern theme app extension framework.

---

10. Call to action

If you’re a Shopify app developer, three concrete asks:

1. Add the pre-deploy probe. It’s 30 lines of Node and a GitHub Actions workflow. It would have saved us three days. It will save you too.
2. Audit your target: body app embeds for shop.metafields reads. If you have any, move them to client-side fetches. Don’t wait for a customer to report 500s.
3. If you’ve hit this before, post about it. This incident was invisible in the public record until we documented it. Every other developer who hits it does the same three-day hunt we did.

And if you’re on Shopify’s platform team reading this: one paragraph on shopify.dev stating that reading from a metafield namespace whose definitions aren’t registered incurs a render-cost penalty, plus public documentation of the shopify-complexity-score header, would have saved us three days. It will save every other team who hits this.

---

Appendix A: Reproducing our results — synthetic probe script

Save as probe.mjs. Run with PROBE_URL='https://your-store.myshopify.com/' and the storefront bypass cookies captured from DevTools “Copy as cURL.”

#!/usr/bin/env node
const URL_TARGET = process.env.PROBE_URL;
const TRIALS = Number(process.env.PROBE_TRIALS || 30);
const INTERVAL_MS = Number(process.env.PROBE_INTERVAL_MS || 1200);
const COOKIE = process.env.PROBE_COOKIE || "";

const HEADERS = {
  accept: "text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8",
  "accept-language": "en-US,en;q=0.9",
  "user-agent": "Mozilla/5.0 (Macintosh; Intel Mac OS X 10_15_7) Chrome/131.0.0.0",
  "cache-control": "no-cache",
  "sec-fetch-dest": "document",
  "sec-fetch-mode": "navigate",
  cookie: COOKIE,
};

async function runTrial(i) {
  const start = Date.now();
  try {
    const res = await fetch(URL_TARGET, { method: "GET", redirect: "follow", headers: HEADERS });
    const status = res.status;
    const complexity = res.headers.get("shopify-complexity-score");
    await res.arrayBuffer();
    const elapsed = Date.now() - start;
    console.log(`trial ${i}: status=${status} complexity=${complexity || "n/a"} ttfb_ms=${elapsed}`);
    return { status, complexity, elapsed };
  } catch (e) {
    return { status: -1, complexity: null, elapsed: Date.now() - start };
  }
}

(async () => {
  const results = [];
  for (let i = 1; i <= TRIALS; i++) {
    results.push(await runTrial(i));
    if (i < TRIALS) await new Promise((r) => setTimeout(r, INTERVAL_MS));
  }
  const ok = results.filter((r) => r.status === 200).length;
  const fail = results.filter((r) => r.status >= 500).length;
  const complexities = results.filter((r) => r.complexity).map((r) => Number(r.complexity));
  const avg = complexities.reduce((a, b) => a + b, 0) / complexities.length;
  console.log(`\nSUMMARY: ${ok}/${TRIALS} ok, ${fail}/${TRIALS} 5xx, avg complexity ${Math.round(avg)}`);
})();

---

This incident happened while building ViewForge, our Shopify YMM / fitment app. ViewForge stores fitment data in Shopify metaobjects instead of an external database, so uninstalling the app doesn’t destroy your data. Eight verticals, Smart Parse, free on up to 50 products.
